Heat Exchanger Coil Manufacturer in Delhi NCR

Mistcold Sales & Services Pvt. Ltd. has established a modern manufacturing plant in the Bawal, Rewari district Haryana to manufacture the heat exchanger coils. The product is made as per best industry guidelines and standards which enhance the rate of heat exchange. As one of the reputed Manufacturers, we make sure that only premium raw material is used for manufacturing of heat transfer coils.

We make sure that each heat exchanger is tested against rigorous quality parameters before final dispatch from manufacturing unit. The entire production takes place under the supervision of highly qualified and experienced professionals in-order to retain the tag of Best Heat Exchanger Coil Manufacturer. We regularly up grade the manufacturing processes & machines to ensure that our clients are able to get the best quality of heat exchangers in the cost effective ranges. The heat exchange coils are used in air-conditioners, fan coils units, air handling units, chillers and other heating and cooling equipment.

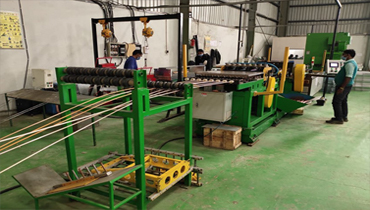

automatic-hai-pin-bender1

Fully Automatic Hairpin Bender

vertical-expander

Vertical Expander

Coil Bending

Coil Bending

Spot & Seam Welding

Spot & Seam Welding

Press Break

Press Break

Shearing

Shearing

Power Press

Power Press

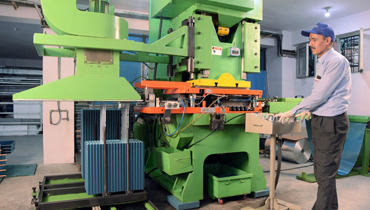

automatic-fin-line1

Automatic Finline

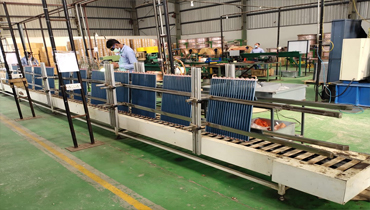

BRAZING CONVEYOR

Brazing Conveyor

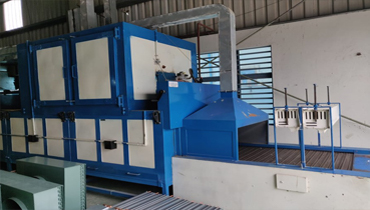

OVEN-CONVEYOR

Oven Conveyor

Videos

Capture

Fin Press

Capture

Hair Pin Bending

Capture

Vertical Expander

Heat Exchanger Specifications

Coil Technical Details

  • Fin Patterns
    7.0mm Ø x 12.7 mm H x 16.48 mm W, Staggered
    9.52 mm Ø x 25.4 mm H x 22.0 mm W, Staggered
    12.7 mm Ø x 31.75 mm H x 27.5 mm W, Staggered
  • FIN SURFACES
    7.0 mm : Plain, Slit/Luover, V-Waffle
    9.52 mm : Plain, Slit/Luover, Sine wave
    12.7 mm : Sine Wave
  • Fin Edges
    Plain / Straight & Rippled
  • Coil Sizes
    Finned Length : 3000 mm Max.
    Finned Height : No constraint
    No. of Rows:  12 Max.
    Fin Spacing : 6-18 FPI in 9.52 mm Pattern, 8-15 FPI in 12.7 mm & 8-21 FPI in 7 mm Pattern
  • Materials
    Copper Tube : Smooth tube, Grooved tube IGT
    Fin Material: Aluminum 0.10 - 0.18 mm thick, Plain or Coated, Copper 0.10 - 0.15 mm
    Copper Tube : Smooth tube, Grooved tube IGT
    Tubes Sheets : Galvanized Steel (GI) , Aluminium or SS
Fin Pattern
Pattern A B C D E=A/4 F=B/2 G H I
7MM 21 12.7 7.25 16.48 5.25 6.35 7.9 9.6 1.27
9.52MM 25.4 22 9.91 25.4 6.35 11 11.3 11.68 2.4
12.7mm 31.75 27.4 13 31.75 7.96 13.75 14.5 15.2 2.15
